Cable Cat6 Bundle
Base Price ₹8,898.31 + ₹1,601.70 GST (18%)
₹10,500.01

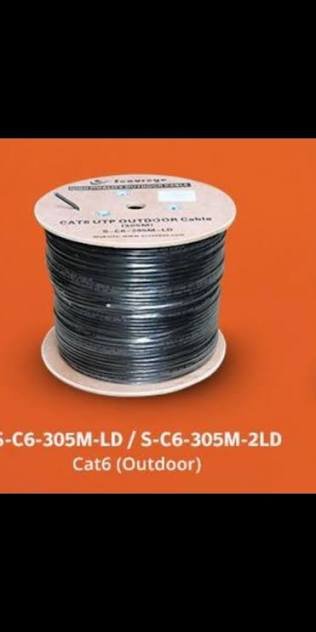

Secureye Cat6 Outdoor UTP Ethernet Cable 305 Metre – S-C6-305M-2DE
Secureye S-C6-305M-2DE is a 305-metre outdoor Cat6 UTP Ethernet cable designed for network connectivity and structured cabling installations. It features 24 AWG solid bare copper conductors, high-density polyethylene insulation, a nominal 5.1 mm cable diameter, and sequential length markings printed on every metre. Suitable for networking installations where outdoor-rated cabling is required.
- Brand :Secureye
- Product SKU :SC-S-C6-305M-2DE
- Category :Cable Cat6 Bundle
-
Availability :
2 In Stock
Base Price ₹8,898.31 + ₹1,601.70 GST (18%)
₹10,500.01
₹19,500.00
(incl. GST)
- Model NameSecureye Cat6 Outdoor UTP Ethernet Cable 305 Metre – S-C6-305M-2DE
- BrandSecureye
- CategoryCable Cat6 Bundle
- AvailabilityIn Stock
The Secureye S-C6-305M-2DE Cat6 Outdoor UTP Cable is designed for Ethernet networking and structured cabling applications. Supplied in a 305-metre box, it uses 24 AWG solid bare copper conductors and high-density polyethylene insulation.
The cable features an FR PVC + LD sheath, nominal insulation thickness of 0.2 mm, and a nominal cable diameter of 5.1 mm. Sequential length markings printed on every metre help installers measure cable usage during installation.
Its specified operating temperature range is -15°C to +60°C. The datasheet also provides transmission characteristics per 100 metres at frequencies from 1 MHz to 600 MHz.
Key Points
305-metre cable box for extended network installations.
24 AWG solid bare copper conductors as specified by the manufacturer.
Outdoor UTP cable construction for networking installations.
HDPE insulation for individual conductors.
Sequential metre markings to help measure cable usage.
5.1 mm nominal cable diameter for installation planning.
Wide operating temperature range: -15°C to +60°C.
Transmission performance data provided for frequencies up to 600 MHz per the datasheet.
Technical specifications
| Specification | Details |
| Brand | Secureye |
| Model Number | S-C6-305M-2DE |
| Product Type | Cat6 Outdoor UTP Cable |
| Cable Length | 305 Metres |
| Conductor | 24 AWG Solid Bare Copper |
| Conductor Configuration | 4 Pair (as listed in datasheet) |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Sheath Material | FR: PVC + LD (datasheet terminology) |
| Nominal Insulation Thickness | 0.2 mm |
| Nominal Cable Diameter | 5.1 mm |
| Box Weight | 10.3 kg nominal |
| Length Marking | Sequential length counter printed on each metre |
| Pulling Force | 10.3 kg |
| Bending Radius | Datasheet states “less than 25.4 mm” at -20°C ± 1°C |
| Operating Temperature | -15°C to +60°C |
| Storage Temperature | 0°C to +50°C |
